Clamp-Ntawm Ultrasonic Flow Meter: Kev xaiv, kev teeb tsa, qhov tseeb, thiab cov lus qhia daws teeb meem

Tab sis ntawm no yog xyoo ntawm kev txhawb nqa tau qhia peb: txog 70% ntawm cov lus tsis txaus siab peb pom tsis yog cov khoom lag luam ua tsis tiav. Lawv yog kev xaiv tsis sib haum lossis kev teeb tsa yuam kev. Ib qho uas tsis yog -invasive flow meter tseem yuav tsum muaj qhov ntsuas qhov ntsuas qhov tseeb, qhov zoo ntawm cov yeeb nkab, thiab qhov chaw xaiv tau zoo. Hla ib qho ntawm cov ntawd, thiab cov ntawv nyeem yuav poob siab tsis hais lub npe lossis tus nqi.

Cov lus qhia no suav nrog plaub nqe lus nug uas peb tau nug feem ntau: yuav ua li cas xaiv qhov zoo sab nraud mounted flow meter, yuav ua li cas rau nruab nws, dab tsi cuam tshuam rau kev ntsuas qhov tseeb hauv thaj teb, thiab yuav ua li cas kuaj cov teeb meem tshwm sim. Txawm hais tias koj tab tom npaj ib qho dej txias retrofit, khiav kev tshawb xyuas lub zog, lossis tshawb xyuas cov cuab yeej inline uas twb muaj lawm, cov ntaub ntawv ntawm no tuaj ncaj qha los ntawm qhov kev paub dhau los.

Cov ntsiab lus

1. Dab tsi yog Clamp- Ntawm Ultrasonic Flow Meter?
2. Transit-Lub Sijhawm vs. Doppler: Lub ntsiab cai twg haum?
3. Qhov Zoo Tshaj Plaws
4. Qhov twg Nws ua haujlwm-thiab Nws Tsis Yog
5. Clamp-On vs. Electromagnetic vs. Vortex
6. Yuav xaiv tus qauv zoo li cas
7. Parameters Koj yuav tsum npaj ua ntej kev teeb tsa
8. Kauj ruam -los ntawm - Kauj ruam Installation
9. V-Mount vs. Z-Mount: Yuav Txiav Txim Li Cas
10. Dab tsi cuam tshuam rau qhov tseeb hauv daim teb
11. Kev daws teeb meem: Cov teeb meem peb pom feem ntau
12. Calibration, Verification, thiab Maintenance
13. Cov ntawv thov kev lag luam thiab cov piv txwv tiag tiag
14. 10 Cov lus nug kom nug ua ntej koj yuav
15. FAQ

Dab tsi yog Clamp- Ntawm Ultrasonic Flow Meter?

Lub clamp- ntawm ultrasonic flow meter- kuj hu ua ib qho kev txuas sab nraud lossis tsis yog -intrusive flow meter- ntsuas volumetric flow los ntawm kev tshuaj xyuas seb ultrasonic nthwv dej li cas los ntawm cov yeeb nkab phab ntsa thiab cov kua dej sab hauv. Cov transducers zaum ntawm cov yeeb nkab sab nraud. Tsis muaj dab tsi nkag mus rau tus txheej txheem kwj.

Qhov no ua rau nws yooj yim sib txawv ntawmelectromagnetic flowmeterlos yogvortex flow meters, uas yuav tsum tau inline installation, yeeb nkab txiav, thiab feem ntau yog ib tug txheej txheem kaw.

Qhov txiaj ntsig zoo tshaj plaws yog qhov ncaj ncees: koj tuaj yeem nruab nws ntawm qhov system nyob. Rau kev khiav hauj lwm cov nroj tsuag, qhov no txhais ncaj qha mus rau hauv cov nqi zog qis, xoom ntau lawm downtime, thiab tsis tas yuav tsum tau daim ntawv tso cai ua hauj lwm kub los yog spool piece tshem tawm.

Transit-Lub Sijhawm vs. Doppler: Lub ntsiab cai twg haum?

Kev mus los - Sijhawm

Kev thauj mus los- lub sij hawm thev naus laus zis xa ultrasonic pulses nyob rau hauv ob qho tib si cov lus qhia- nrog rau qhov ntws thiab tawm tsam nws. Cov dej nrawm hloov lub sijhawm mus ncig ntawm txhua lub teeb liab. Los ntawm kev sib piv ob lub sijhawm thauj mus los, lub ntsuas ntsuas ntsuas qhov nrawm nrawm thiab hloov nws mus rau volumetric flow rate.

Txoj kev no ua haujlwm zoo tshaj plaws rau cov kua dej huv, homogeneous: dej huv, dej txias, dej txias, dej softened, thiab ntau yam tsawg -cov tshuaj viscosity uas muaj cov ntsiab lus tsawg tsawg. Nws yog nyob deb ntawm txoj cai feem ntau siv hauvtransit{0}} lub sij hawm ultrasonic flow meterrau cov ntawv thov kev lag luam thiab HVAC.

Raws li cov xwm txheej zoo tshaj plaws -cov yeeb nkab huv si, tag nrho cov yeeb nkab, qhov tsis raug, kev khiav ncaj nraim - kev thauj mus los- lub sij hawm clamp- ntawm meters tuaj yeem ua tiav qhov tseeb hauv ± 1% ntawm kev nyeem ntawv, thiab qee cov tuam txhab thov ± 0.5% rau kev txhim kho kom zoo (raws li hais hauvISO 12242 Kev Tswj Xyuas, uas hais txog kev thauj mus los -timemeters rau kua).

Doppler

Doppler thev naus laus zis ntsuas qhov zaus hloov pauv ntawm cov cim ultrasonic cuam tshuam los ntawm cov khoom lossis cov npuas raug tshem tawm hauv cov kua. Nws yuav tsum muaj qee qhov acoustic reflectors hauv cov kua ua haujlwm.

Doppler ultrasonic flow meterFeem ntau suav hais tias yog cov dej khib nyiab nrog cov khib nyiab tshem tawm, slurries, thiab cov kua dej uas muaj cov npuas me me. Qhov tseeb yog feem ntau qis dua kev thauj mus los- lub sijhawm, feem ntau nyob rau hauv ± 2–5% ntau yam, thiab cov txiaj ntsig tau nyob ntawm qhov hnyav ntawm qhov sib piv thiab kev faib tawm.

Txoj cai ceev:Yog tias cov kua dej huv huv thiab pob tshab acousically, pib nrog kev thauj mus los - sijhawm. Yog tias cov kua dej muaj cov khoom pov thawj pom lossis tsis muaj aeration, ntsuas Doppler-tab sis ib txwm sim ntawm qhov chaw ua ntej.

Qhov Zoo Tshaj Plaws

Tsis muaj yeeb nkab txiav, Tsis muaj kev tsim khoom poob

Nyob rau hauv retrofit tej yaam num, tus nqi ntawm lub 'meter' yog tsis tshua muaj tus nqi tseem ceeb. Kev kaw lub tshuab chiller rau ob hnub rau vuam hauv flanges, ua cov ntawv tso cai ua haujlwm kub, tso dej thiab cov kab rov ua dua tshiab - cov nqi khiav lag luam no tuaj yeem yooj yim tshaj tus nqi ntsuas los ntawm tsib lossis kaum zaug. Ib qho kev ntsuas uas tsis yog -invasive flow ntsuas tshem tawm feem ntau ntawm cov nyiaj siv ua haujlwm.

Zero Siab Poob

Vim tias tsis muaj dab tsi nyob hauv cov yeeb nkab, tsis muaj qhov cuam tshuam ntws thiab tsis muaj kev poob siab ntxiv. Qhov no tseem ceeb nyob rau hauv cov kab ke, loj - txoj kab uas hla, thiab txhua daim ntawv thov uas lub twj tso kua mis muaj kev txhawj xeeb. Rau HVAC cov tshuab khiav dej txias ntawm qhov sib txawv tsis tshua muaj siab, txawm tias qhov kev txwv me me ntxiv los ntawm lub ntsuas hluav taws xob tuaj yeem cuam tshuam rau qhov sib npaug.

Kev kho qis

Tsis muaj qhov ntub dej, tsis muaj electrode fouling, tsis muaj kabmob hnav, tsis muaj gasket degradation. Cov transducers zaum sab nraum cov txheej txheem, tiv thaiv corrosion thiab tshuaj tua kab mob. Hauv kev xyaum, cov haujlwm tseem ceeb ntawm kev saib xyuas yog kuaj xyuas qhov sib txuas ntawm lub sensor thiab txheeb xyuas qhov ntsuas qhov ntsuas - yooj yim dua li rub lub ntsuas ntsuas inline rau kev tshuaj xyuas.

Zoo tagnrho rau kev ua haujlwm ib ntus thiab pov thawj

Portable clamp- ntawm ultrasonic flow meteryog cov cuab yeej siv tau zoo tshaj plaws rau cov engineers teb. Koj tuaj yeem txav ib qho cuab yeej hla ntau lub ntsuas ntsuas hauv ib hnub: xyuas cov ceg kab sib npaug, txheeb xyuas cov twj tso kua mis, sib piv cov ntawv nyeem tawm tsam cov ntsuas ntsuas uas twb muaj lawm, lossis sau cov ntaub ntawv rau kev tshuaj xyuas lub zog. Tsis muaj lwm yam dej ntws thev naus laus zis muab hom kev xa tawm yooj yim.

Qhov twg Nws ua haujlwm-thiab Nws Tsis Yog

Ua ntej ntsuas cov qauv, hom, lossis tus nqi, thawj lo lus nug yuav tsum nco ntsoov: daim ntawv thov no puas haum rau clamp- ntawm kev ntsuas?

Zoo -Suited Applications

• Cov dej huv huv- cov dej ntim tau, dej ua haujlwm,dej txias, softened dej
• HVAC chilled dej thiab condenser dej loops
• Circulating kua kab qhov twg kaw yog impractical
• Sib npaug sib npaug thiab acoustic pob tshab kua kua
• Kev ntsuas ib ntus, commissioning checks, thiab retrofit xyuas
• BTU thiab lub zog ntsuashauv hydronic systems

Tej yam uas nyuaj los yog tsis tsim nyog

Cov xwm txheej no yuav ua rau kev ua haujlwm tsis zoo lossis ua rau kev siv tshuab tsis zoo:

• High gas npuas ntsiab lus-air entrainment cuam tshuam txoj kev ultrasonic thiab ua rau lub teeb liab tawm
• High solids concentration-Tshaj tawm qhov Doppler tuaj yeem ua tau, lub teeb liab yuav tawg dhau rau kev ntsuas kev ntseeg tau
• Heavy internal scale los yog corrosion deposits- hloov txoj kab uas hla ntawm cov yeeb nkab ua tau zoo thiab txo cov teeb liab yam tsis tau pom dua
• Ib nrab ntim cov yeeb nkab- txoj kev ultrasonic xav tias tag nrho tus ntoo khaub lig-section; ib nrab sau muab cov ntawv nyeem tsis raug
• Mob plab pulsation-los ntawm cov twj reciprocating, ceev valve cycling, los yog slug flow
• Cov yeeb nkab tuab heev los yog cov ntaub ntawv muaj zog heev-pab-kab yeeb nkab, fiberglass-cov yas siv nrog cov phab ntsa tuab, lossis hnyav cam khwb cia hlau tuaj yeem thaiv lub teeb liab tag nrho

Qhov cuam tshuam ntawm cov yeeb nkab

Qhov no tsim nyog hais txog vim peb pom nws ua teeb meem ntau zaus. Clamp- ntawm kev ntsuas yog nyob ntawm ultrasonic nthwv dej kom huv si los ntawm cov yeeb nkab phab ntsa. Cov pa roj carbon steel thiab stainless hlau kav hauv qhov zoo yog feem ntau ncaj nraim. Cov kav dej yas tuaj yeem ntsuas tau, tab sis qhov tseeb lub suab nrawm rau cov khoom siv tshwj xeeb yuav tsum tau nkag mus. Cov kab yeeb nkab yuav tsum muaj cov ntaub ntawv hauv ob sab phlu thiab cov ntaub ntawv tuab-yog tias qhov tsis ncaj ncees lawm, txoj kev suav lub suab yuav raug kaw, thiab cov nqi ntws yuav tsis raug txawm tias lub teeb liab zoo li pom tau.

Rau cov kav dej qub uas tsis paub txog qhov xwm txheej sab hauv, peb xav kom muaj qhov chaw sim nrog lub chaw nqa khoom ua ntej cog lus rau kev teeb tsa mus tas li. Kev kuaj xyuas 30-feeb tuaj yeem txuag lub lis piam ntawm kev daws teeb meem tom qab.

Clamp-Ntawm vs. Electromagnetic vs. Vortex: Thaum Yuav Siv Dab Tsi

Nov yog ib qho ntawm cov lus nug uas peb tau txais los ntawm qhov project engineers. Lo lus teb tsis yog tias ib qho cuab yeej siv tau zoo tshaj plaws hauv ntiaj teb -txhua lub hnab ntawv ua haujlwm qhov nws ua tau zoo.

Rau kev sib piv kev sib sib zog nqus, saib peb tsab xov xwm ntawmultrasonic thiab electromagnetic flowmeter.

Thaum Clamp-Ntawm Yog Qhov Kev Xaiv Muaj Zog?

Xaiv lub clamp- ntawm lub ntsuas ntsuas ultrasonic thaum txoj kab tsis tuaj yeem kaw, thaum cov yeeb nkab txiav tsis raug tso cai, thaum koj xav tau kev ntsuas ib ntus lossis ntau- taw tes ntsuas, thaum koj xav txheeb xyuas lub ntsuas ntsuas uas twb muaj lawm, lossis thaum rov ua kom nrawm dua yog qhov tseem ceeb tshaj qhov ua tiav qhov nruj tshaj plaws tau ntev - lub sijhawm raug.

Thaum Inline Technologies haum zoo dua?

Yog tias qhov project tso cai rau kev npaj kaw, yuav tsum muaj kev saib xyuas- hloov cov qib raug, suav nrog cov kua dej uas muaj cov khoom hnyav lossis aeration hnyav, lossis xav tau kev ntsuas qhov ntsuas qhov ruaj khov, zoo -tsim kev teeb tsa, electromagnetic los yog vortex meters yuav feem ntau xa tau ntev dua - kev ua tau zoo. Mag meters yog tshwj xeeb tshaj yog muaj zog rau cov kua conductive nyob rau hauv tas li lub luag hauj lwm. Vortex meters tseem yog tus qauv xaiv rau kev ntsuas chav thiab roj qhov twg ultrasonic clamp- ntawm kev siv tshuab ntsib kev txwv lub cev.

Yuav Ua Li Cas Xaiv Txoj Cai Clamp- Ntawm Ultrasonic Flow Meter

Tau txais kev xaiv txoj cai yog qhov tseem ceeb tshaj li cov neeg yuav khoom feem ntau paub. Ib lub 'meter' uas ua tau zoo ntawm ib lub yeeb nkab yuav tawm tsam rau lwm qhov yog tias cov ntawv thov yuav tsum txawv.

Pib nrog cov yeeb nkab

Txawv transducer teeb npog sib txawv cov yeeb nkab txoj kab uas hla. Lub sensor tsim rau DN50-DN300 kav dej yuav tsis ua haujlwm ntawm DN15 yeeb nkab lossis DN1000 yeeb nkab. Sib piv cov transducer mus rau qhov tseeb sab nraud txoj kab uas hla, tsis yog lub nominal yeeb nkab loj. Raume -inch clamp- ntawm daim ntawv thov(hauv qab DN50), tshwj xeeb me me - yeeb nkab transducers feem ntau yuav tsum tau.

Ua kua dej

Rau cov kua dej huv, kev thauj mus los - lub sijhawm yog lub neej ntawd. Rau cov kua dej uas muaj me me los yog npuas, xav txog Doppler-tab sis nco ntsoov xyuas ntawm qhov chaw. Qee cov kua dej uas huv si tuaj yeem muaj micro- npuas lossis cov pa yaj uas tawm los ntawm kev daws ntawm qee qhov kub, ua rau muaj teeb meem tsis sib xws.

Portable vs. Tsau

Cov qauv portable haum rau kev tshuaj xyuas, commissioning, kev sim ib ntus, thiab ntau- taw tes xyuas lub zog. Cov qauv ruaj khov haum rau kev soj ntsuam tas li, kev sib koom ua ke, thiab kev ua haujlwm ntev - mus txog qhovtwg. Yog tias koj xav tau cov ntaub ntawv nkag 24/7 thiab pub rau hauv BMS lossis DCS, kev teeb tsa ruaj khov yog txoj hauv kev.

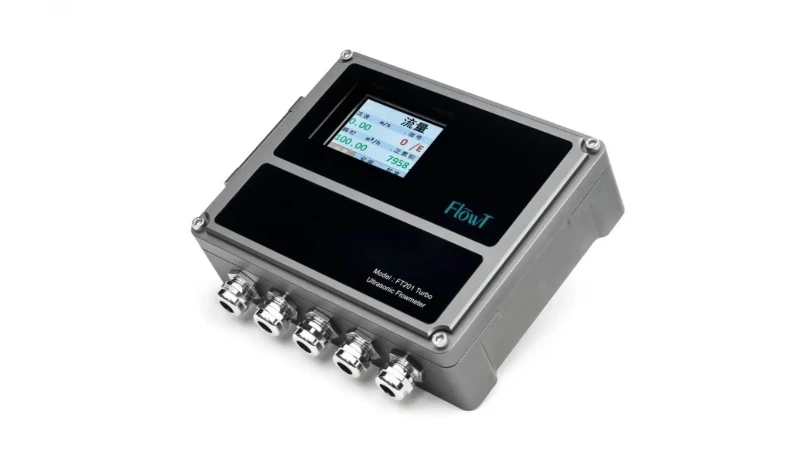

Kev Tshaj Tawm thiab Kev Sib Txuas Lus

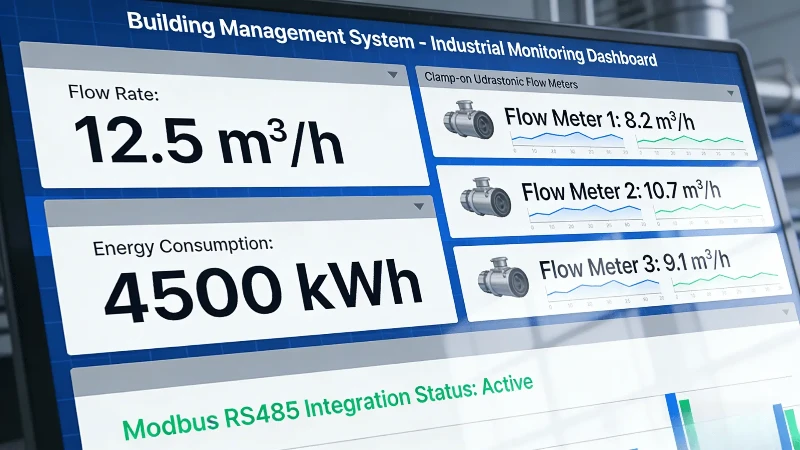

Hauv cov dej num hauv kev lag luam, qhov ntsuas yuav luag txhua zaus yuav tsum tau tham nrog lwm yam: PLC, DCS, kev tswj hwm lub tsev, lossis lub zog tswj lub zog. Cov kev xav tau tsim tawm muaj xws li 4-20 mA, pulse output, RS485, thiab Modbus RTU. Tshawb xyuas qhov no thaum ntxov- nrhiav pom kev sib txuas lus tsis sib haum xeeb tom qab kev teeb tsa yog kim thiab ntxhov siab.

Ib puag ncig

Paub meej qhov tseeb ntawm qhov chaw: sab hauv lossis sab nraum zoov, qhov kub thiab txias ntawm qhov chaw, qhov av noo lossis qhov chaw raug tshem tawm, corrosive huab cua, kev faib cov cheeb tsam txaus ntshai, thiab muaj cov khoom siv hluav taws xob. IP65-rated transmitter tej zaum yuav zoo rau chav tsev kho tshuab hauv tsev tab sis tsis tsim nyog rau kev teeb tsa sab nraum zoov raug los nag thiab tshav ntuj ncaj qha.

Kev xaiv ceev ceev

Parameters Koj yuav tsum npaj ua ntej kev teeb tsa

Cov kauj ruam no yog qhov uas tsis txaus ntseeg ntawm cov kev teeb tsa tsis raug. Lub 'meter' siv cov kev ntsuas uas koj nkag mus rau xam cov kev ultrasonic, transducer spacing, thiab xav tau lub teeb liab lub sij hawm. Cov tswv yim tsis raug txhais tau tias cov txiaj ntsig tsis raug-txawm tias lub teeb liab zoo li muaj zog ntawm cov zaub.

Cov ntaub ntawv yeeb nkab (Tsis yog-Negotiable)

• Sab nraud txoj kab uas hla- ntsuas nws. Tsis txhob siv nominal yeeb nkab loj. DN100 Teem sijhawm 40 carbon steel yeeb nkab muaj OD ntawm 114.3 hli, tsis yog 100 hli. Qhov kev ua yuam kev no tsuas yog tom qab kev teeb tsa tsis raug ntau dua li lwm yam.
• Phab ntsa thickness-yog tias koj tsis tuaj yeem ntsuas nws nrog lub ntsuas ntsuas ultrasonic, siv cov yeeb nkab tshwj xeeb. Tsis txhob twv.
• Cov khoom siv yeeb nkab- carbon steel, stainless hlau, PVC, tooj liab, thiab lwm yam.
• Sab hauv muaj, cov khoom, thiab thickness-rubber-lined, cement-lined, epoxy-coated. Yog tias koj nkag mus rau xoom hauv ob sab phlu ntawm cov cement-lined yeeb nkab, qhov kev nyeem ntws tuaj yeem sib txawv ntawm 10% lossis ntau dua.

Cov ntaub ntawv dej

• Hom kua (dej, glycol sib tov, tshuaj tov, thiab lwm yam)
• Kev khiav hauj lwm kub ( cuam tshuam rau lub suab nrawm heev)
• Muaj cov npuas, cov khoom khib nyiab, lossis cov cua nkag
• Cia siab tshaj qhov ntau

Cov txheej txheem thiab qhov chaw nyob

• Puas yog cov yeeb nkab ib txwm puv ntawm qhov ntsuas ntsuas?
• Dab tsi yog qhov cuam tshuam ntawm cov dej ntws thiab qis qis (lub luj tshib, li qub, twj tso kua mis, tees, reducers)?
• Ntev npaum li cas cov yeeb nkab ncaj yog muaj?
• Puas yog qhov mounting point lub cev siv tau rau kev teeb tsa sensor thiab kev tshuaj xyuas yav tom ntej?

Yog xav paub ntxiv txog yuav ua li cas pipeline parameters cuam tshuam rau kev ntsuas, saib peb daim ntawv qhia kev:Qhov cuam tshuam ntawm Pipeline Parameters ntawm Kev Ntsuas.

Kauj ruam -los ntawm - Kauj ruam Installation

Kev teeb tsa kom raug yog qhov tseem ceeb tshaj plaws nyob rau hauv seb lub clamp- ntawm lub ntsuas ntsuas muab qhov tseeb, ruaj khov nyeem lossis ua cov ntaub ntawv ntxhov siab. Ntawm no yog cov kab ke uas ua haujlwm tsis tu ncua hauv thaj teb. Rau cov lus qhia ntxaws, kuj xa mus rau pebUltrasonic flow meter installation qhia.

Kauj Ruam 1: Nkag mus rau cov kav dej thiab cov dej tsis muaj dej

Nkag mus rau qhov tseeb ntsuas sab nraud txoj kab uas hla, paub tseeb tias phab ntsa tuab, cov khoom siv yeeb nkab, cov ntaub ntawv hauv ob sab phlu, thiab hom kua dej rau hauv lub transmitter. Lub 'meter' siv cov txiaj ntsig no los suav cov acoustic path geometry thiab qhov xav tau ntawm qhov sib txawv transducer.

Feem ntau ua yuam kev nyob rau theem no: nkag mus rau lub nominal yeeb nkab loj (piv txwv li, DN100) es tsis txhob ntawm qhov tseeb OD (piv txwv li, 114.3 hli), siv lub generic phab ntsa thickness yam tsis tau xyuas lub sij hawm tiag tiag, tshem tawm cov ntaub ntawv hauv ob sab phlu, los yog sib tov metric thiab imperial units.

Kauj ruam 2: Xaiv txoj kev Mounting

Raws li cov yeeb nkab loj, phab ntsa tuab, thiab qhov ntsuas qhov ntsuas sab hauv, xaiv V-mount lossis Z-mount. Feem ntau cov meters yuav pom zoo ib qho tau txais thaum cov yeeb nkab tsis nkag.

Kauj Ruam 3: Npaj cov yeeb nkab nto

Ntxuav cov yeeb nkab sab nraud ntawm qhov chaw xaiv. Tshem tawm cov xim pleev xim, xeb, xoob nplai, thiab cov khoom tsis sib xws. Lub ntsej muag transducer yuav tsum zaum tiaj tus thiab ntws tawm ntawm cov yeeb nkab phab ntsa. Qhov chaw ntxhib los yog tsis sib xws ua rau muaj qhov sib txawv ntawm cov huab cua uas ua rau tsis muaj zog acoustic coupling - qhov no yog ib qho ntawm feem ntau ua rau lub teeb liab tsis muaj zog.

Ntawm cov pa roj carbon steel yeeb nkab, xuab zeb los yog sib tsoo ib qho du thaj tsam kwv yees li 50 mm × 50 mm nyob rau hauv txhua txoj haujlwm transducer yog tus qauv coj ua.

Kauj Ruam 4: Siv cov Coupling Compound thiab ruaj ntseg Sensors

Siv ultrasonic coupling compound (feem ntau silicone roj) sib npaug rau lub ntsej muag transducer. Qhov no ua rau microscopic khoob ntawm lub transducer thiab cov yeeb nkab phab ntsa. Mount cov sensors khov kho ntawm qhov ntsuas qhov sib txawv siv qhov muab clamp lossis pluaj fixture. Cov sensors yuav tsum tsis txhob hloov thaum ua haujlwm.

Kauj Ruam 5: Txheeb xyuas qhov teeb meem zoo

Cov kauj ruam no tseem ceeb heev thiab feem ntau hla dhau. Tom qab mounting, tsis txhob cia li saib tus naj npawb txaus. Tshawb xyuas:

• Teeb liab lub zog- ob qho tib si nce thiab nqis qis yuav tsum muaj zog (feem ntau siab dua 60–80% ntawm qhov ntsuas qhov ntsuas)
• Cov teeb liab zoo (Q tus nqi)-yuav tsum ruaj khov thiab siab dua qhov ntsuas qhov ntsuas
• Kev thauj mus los -time ratio-yuav tsum nyob ze rau 100% (hauv ± 3% ntawm cov twj paj nruag feem ntau)
• Tso tawm tshaj tawm-yuav tsum yog lub cev tsim nyog rau cov yeeb nkab loj thiab qhov yuav tsum tau ntws

Yog tias ib qho ntawm cov no tsis zoo, kho qhov sib txawv ntawm transducer, rov- xyuas kev sib dhos, ntxiv cov txuas txuas ntxiv, lossis txiav txim siab tsiv mus rau lwm qhov chaw yeeb nkab ua ntej lees txais kev teeb tsa.

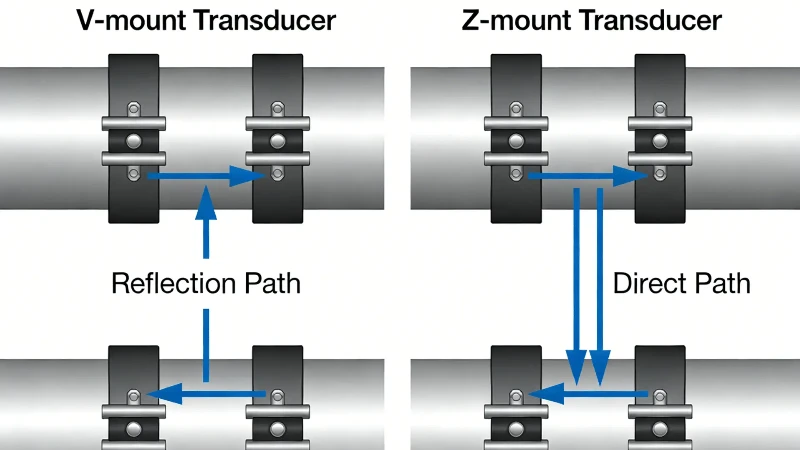

V-Mount vs. Z-Mount: Yuav Txiav Txim Li Cas

Cov no yog ob qho kev siv ntau tshaj plaws mounting configurations, thiab xaiv qhov tsis ncaj ncees lawm yog ib qho kev xav tsis thoob ntawm cov teeb liab tsis muaj zog uas tau txais kev thuam ntawm lub 'meter'.

Ib qho yuam kev Field

Peb niaj hnub pom cov neeg siv sim V-mount rau ntawm DN500 carbon steel yeeb nkab, tau txais lub teeb liab tsis muaj zog lossis tsis pom, thiab xaus lus tias lub ntsuas ntsuas tsis tuaj yeem ua rau daim ntawv thov. Hauv kev muaj tiag, hloov mus rau Z-mount- uas muab txoj hauv kev ncaj qha acoustic rau ntawm - txoj kab nruab nrab yeeb nkab - feem ntau daws qhov teeb meem tam sim ntawd. Ib yam li ntawd, ntawm cov kav dej hauv qab DN50, V-mount yuav tsis muab lub teeb liab txaus, thiab Z-mount yog qhov kev xaiv zoo.

Kev tshem tawm: yog tias cov teeb liab tsis zoo, tsis txhob xav tias cov yeeb nkab tsis haum. Sim lwm txoj kev txuas ntxiv, rov- xyuas qhov tsis muaj, thiab txheeb xyuas qhov kev npaj nto ua ntej tso tseg.

Dab tsi cuam tshuam rau qhov tseeb hauv daim teb?

Factory specifications yuav hais ± 1% lossis ± 0.5%. Tab sis nyob rau hauv lub teb, qhov tseeb tseeb nyob ntawm lub installation. Kev nkag siab txog cov ntsiab lus tseem ceeb ua rau koj tswj tau qhov koj tuaj yeem ua tau thiab paub txog qhov koj ua tsis tau. Rau kev sib tham tob, saibYuav ua li cas yog clamp- ntawm ultrasonic flow meter.

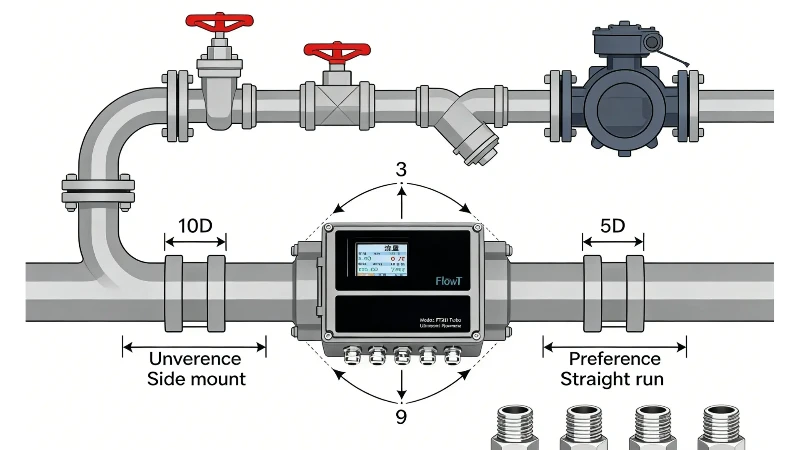

Tsis txaus Ncaj Pipe Khiav

Qhov no yog qhov tseem ceeb tshaj plaws ntawm kev teeb tsa. Kev lag luam kev coj ua, dav dav raws li kev taw qhia hauv cov qauv zoo liISO 12242 Kev Tswj XyuasthiabASME MFC-5M, pom zoo kom tsawg kawg ntawm 10 yeeb nkab diameters (10D) ntawm undisturbed ncaj yeeb nkab upstream thiab 5D downstream. Rau kev teeb tsa hauv qab ntawm ob lub luj tshib hauv cov dav hlau sib txawv, 20D lossis ntau dua cov dej ntws yuav xav tau.

Thaum kev khiav ncaj nraim yog txwv, qhov ntws profile ntawm qhov ntsuas qhov taw qhia tsis tau tsim tag nrho, thiab lub ntsuas ntsuas nyeem qhov ntsuas qhov nruab nrab tsis sawv cev. Qhov no yog ib qho laj thawj feem ntau yog vim li cas lub clamp- ntawm kev nyeem ntawv txawv ntawm qhov ntsuas ntsuas inline.

Installation Txoj hauj lwm ntawm cov yeeb nkab

Ntawm cov kav dej kab rov tav, mounting ntawm 3 teev lossis 9 teev sawv ntxov (sab-mounted) feem ntau nyiam. Mounting ntawm sab saum toj txaus ntshai ntsib huab cua daig; mounting nyob rau hauv qab no txaus ntshai sediment tsub zuj zuj. Ob qho xwm txheej cuam tshuam nrog txoj kev ultrasonic.

Txoj Cai Phab Ntsa

Internal corrosion deposits, scale buildup, thiab sab nraud xeb tag nrho cuam tshuam cov teeb liab kis tau tus mob. Ib cov yeeb nkab uas yog DN100 nrog 3.0 hli phab ntsa thickness thaum tshiab tej zaum yuav poob 1.5 hli rau sab hauv corrosion tshaj 15 xyoo. Yog tias koj nkag mus rau qhov qub phab ntsa tuab, txoj kev suav lub suab tsis raug, thiab kev nyeem ntawv ntws hloov raws li.

Npuas thiab ib nrab sau

Kev nkag mus rau huab cua thiab cov kav dej ib nrab yog cov teeb meem nyuaj tshaj plaws los kuaj xyuas vim tias lub ntsuas hluav taws xob tseem tuaj yeem qhia qhov kev nyeem ntws. Tus lej tsuas yog tsis ntseeg. Yog hais tias cov yeeb nkab kab rov tav tuaj yeem khiav ib nrab ntawm qhov khoob - xws li ntawm qhov nqus ntawm lub twj tso kua mis lossis ntawm qhov chaw siab tshaj ntawm cov kav dej - qhov chaw ntawd tsis haum rau clamp- ntawm kev ntsuas.

Tsis raug Parameter nkag

Peb tau pom kev teeb tsa qhov twg DN150 yeeb nkab tau nkag mus li 150 hli OD hloov qhov tseeb 168.3 hli. Qhov tshwm sim: kev nyeem ntawv ntws tawm los ntawm ntau dua 20%, tsis muaj lub tswb lossis ceeb toom los ntawm lub ntsuas. Lub ntsuas ntsuas raws nraim qhov koj qhia kom suav. Cov tswv yim tsis raug, cov txiaj ntsig tsis raug.

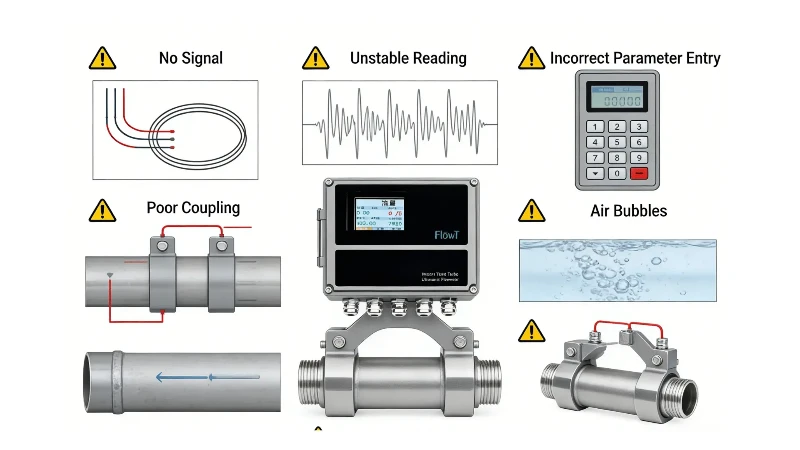

Kev daws teeb meem: Cov teeb meem peb pom feem ntau

Teeb meem 1: Tsis muaj teeb liab txhua

Xyuas cov khoom no raws li kev txiav txim:

1. Puas yog cov yeeb nkab tsis (OD, phab ntsa tuab, cov khoom siv, hauv ob sab phlu) nkag raug?
2. Puas yog txoj kev mounting tsim nyog rau cov yeeb nkab loj no? (Siv hloov V ↔ Z.)
3. Puas txaus coupling compound siv, thiab cov yeeb nkab saum npoo puas npaj tau zoo?
4. Puas yog qhov sib txawv ntawm qhov sib txawv ntawm qhov ntsuas qhov ntsuas tus nqi?
5. Puas yog qhov chaw teeb tsa ze ze rau lub vuam seam, flange, luj tshib, lossis valve?
6. Cov yeeb nkab puas muaj cov kua dej?

Hauv kwv yees li 80% ntawm "tsis muaj teeb liab" tshwm sim hauv peb qhov kev paub txog kev txhawb nqa, qhov teeb meem tau daws los ntawm ib qho ntawm thawj plaub yam ntawm cov npe no.

Teeb meem 2: Teeb liab tam sim no tab sis nyeem tsis ruaj khov

Qhov no txhais tau hais tias txoj kev acoustic ua haujlwm, tab sis ib yam dab tsi cuam tshuam qhov kev ntsuas ntws. Tshawb nrhiav:

• Cov twj uas nyob ze, li qub, lossis lub luj tshib ua rau muaj kev kub ntxhov nyob rau hauv txoj kev khiav ncaj nraim
• Huab cua npuas los yog pulsating ntws los ntawm cov khoom siv hluav taws xob
• Cov yeeb nkab vibration los ntawm cov tshuab uas nyob ib sab
• Loose sensor mounting -kev co tuaj yeem maj mam loosen clamps
• Cov txheej txheem tseeb hloov pauv uas yog tiag tiag, tsis yog ntsuas suab nrov

Teeb meem 3: Kev nyeem ntawv txawv qhov txawv ntawm qhov ntsuas uas twb muaj lawm

Qhov no yog qhov tsis txaus siab tshaj plaws hauv cov haujlwm pov thawj, thiab nws yuav tsum tau ua tib zoo tshuaj xyuas. Tsis txhob tam sim ntawd xav tias ob lub meter tsis yog lawm. Tshawb xyuas:

• Puas yog ob qho kev ntsuas ntsuas ib txhij nyob rau hauv tib txoj kev thauj khoom?
• Puas yog qhov ntsuas inline tau ntsuas tsis ntev los no? (Mag meters tuaj yeem drift nrog electrode fouling; vortex meters tuaj yeem hloov nrog sensor degradation.)
• Puas yog qhov clamp- ntawm cov ntsuas ntsuas ntsuas pom tseeb?
• Puas muaj cov kab bypass, cov ntsiab lus xau, lossis kev sib txuas ntawm ob qhov ntsuas ntsuas?
• Puas yog lub clamp- ntawm lub 'meter' ntsia nrog kev khiav ncaj nraim?

Ib qho kev sib piv feem ntau qhia tau hais tias ob lub ntsuas ntsuas tau nyeem nyob rau hauv lawv qhov raug cov qhab nia rau qhov tseeb kev teeb tsa- qhov pom tseeb tsis sib xws los ntawm kev sib piv lub qhov dej - nruab inline meter tiv thaiv lub nrawm nrawm nrawm nrawm- ntawm chav tsev. Rau kev qhia txog kev txhim kho koj cov kev nyeem ntawv, saibYuav ua li cas txhim kho ultrasonic flow meter raug.

Calibration, Verification, thiab Maintenance

Factory Calibration vs. Field Verification

Factory calibration paub meej tias ntsuas kev ua tau zoo nyob rau hauv kev tswj cov chaw kuaj mob, feem ntau ntawm cov dej ntws calibration rig traceable rau lub teb chaws cov qauv (ibISO / IEC 17025 Kev Tswj Xyuas Kev Lag Luamxav tau). Field verification paub meej tias qhov kev teeb tsa ua haujlwm tau txais txiaj ntsig zoo hauv cov txheej txheem tiag tiag.

Rau clamp- ntawm cov meters, kev txheeb xyuas qhov chaw feem ntau yog qhov tseem ceeb dua ntawm ob. Ib lub 'meter' uas ua tau zoo kawg nkaus hauv chav kuaj tseem tuaj yeem xa cov txiaj ntsig tsis zoo ntawm cov yeeb nkab uas tsis zoo los yog hauv qhov chaw uas tsis muaj kev khiav ncaj nraim. Hloov pauv, lub qhov dej- ntsia clamp- ntawm chav kuaj xyuas tawm tsam tus qauv siv hauv thaj chaw muab kev ntseeg siab rau kev siv ua haujlwm.

Thaum twg yuav rov-Ua pov thawj

Xav txog qhov pov thawj tshiab thaum:

• Lub mounting txoj hauj lwm tau raug hloov los yog cov sensors raug tshem tawm thiab reinstalled
• Cov txheej txheem kua tau hloov pauv (piv txwv li, hloov ntawm dej mus rau glycol tov)
• Cov kab mob ntawm cov yeeb nkab tau hloov pauv loj heev (txoj kab tshiab, nce qhov ntsuas)
• Kev ntsuas drift tshwm nyob rau hauv cov ntaub ntawv sib txawv lub sijhawm
• Qhov project xav kom muaj kev ntseeg siab dua rau kev suav nyiaj, kev them nqi, lossis kev tshaj tawm kev tswj hwm

Kev tu txhua hnub

Clamp- ntawm cov meters xav tau kev saib xyuas tsawg dua li cov cuab yeej hauv kab, tab sis lawv tsis tu- dawb. Ib lub sij hawm saib xyuas cov tswv yim suav nrog:

• Tshawb xyuas tias cov sensors nyob ruaj khov -kho cua sov caij tsheb kauj vab thiab cov yeeb nkab vibration tuaj yeem xoob clamps ntau lub hlis
• Kev tshuaj xyuas qhov sib txuas ntawm qhov sib txuas- nws tuaj yeem qhuav los yog degrade nyob rau lub sijhawm, tshwj xeeb tshaj yog nyob rau hauv siab - daim ntawv thov kub
• Txheeb xyuas cov kev sib txuas cable thiab ib puag ncig sealing
• Tshawb xyuas cov kev nyeem tam sim no tawm tsam keeb kwm tiam sis kom pom cov kev hloov maj mam
• Paub meej tias qhov kev teeb tsa parameter tsis raug hloov pauv

Cov ntawv thov kev lag luam thiab cov piv txwv tiag tiag

HVAC thiab Tsev Kev Pabcuam

Qhov no yog ib qho ntawm ntau tshaj - thaj chaw thov ntim. Cov dej txias txias, dej condenser, thiab cov dej kub hauv cov tsev lag luam feem ntau xav tau kev ntsuas dej ntws rau kev ntsuas qhov ntsuas, ntsuas lub zog, thiab kev txheeb xyuas kev ua haujlwm. Tsis yog -invasive meters yog tshwj xeeb tshaj yog muaj nqis nyob rau hauv lub tsev retrofits qhov twg cov neeg kho tshuab chav tsis tau tsim nrog inline flow meter cov kev cai.

Dej thiab dej khib nyiab

Hauv kev kho dej hauv nroog thiab kev faib khoom, clamp- ntawm cov meters ua haujlwm rau kev saib xyuas mus tas li thiab kev soj ntsuam ib ntus. Lawv feem ntau xa mus rau cov kab kab, cov chaw nres tsheb hauv chaw nres tsheb, thiab cov chaw xa khoom loj uas qhov kev teeb tsa inline yuav xav tau kev ua haujlwm loj hauv pej xeem.

Kev ua tshuaj lom neeg

Kev xaiv cov kua siv tshuaj tuaj yeem ua haujlwm zoo yog tias cov kua dej tsis sib xws, ruaj khov, thiab acoustic haum. Cov phiaj xwm tshuaj yuav tsum tau ua kom tiav ua ntej- kev soj ntsuam ntau dua li cov tshuab dej vim tias cov khoom siv dej, cov khoom siv yeeb nkab, thiab cov ntaub ntawv hauv ob sab phlu muaj ntau qhov sib txawv.

Kev Tswj Xyuas Zog

Ntau qhov kev txhim kho kev ua tau zoo pib nrog kev ntsuas, tsis yog hloov khoom siv. Clamp- ntawm cov ntsuas ultrasonic yog qhov haum rau qhov " ntsuas thawj zaug, ua kom zoo dua thib ob". Lawv tuaj yeem raug teeb tsa los ntsuas qhov kev ua haujlwm ntawm cov chiller cog kev ua haujlwm, kev ua haujlwm ntawm lub twj tso kua mis, cov khoom siv hluav taws xob sib txawv, lossis lub peev xwm txias ntauwd- yam tsis muaj kev hloov kho.

Piv txwv li Project 1: Chilled Water Retrofit in a Commercial Building

Ib 15-xyoo- lub chaw ua haujlwm qub xav tau cov ntaub ntawv siv hluav taws xob ua haujlwm rau txhua ntawm rau lub tshuab chiller, tab sis cov kav dej uas twb muaj lawm tsis muaj cov ntsuas ntws thiab tsis muaj qhov rais kaw. Peb tau teeb tsa kev thauj mus los ruaj khov- lub sijhawm clamp- ntawm qhov ntsuas ntawm DN200 carbon steel kav (Teem sijhawm 40, phab ntsa tuab 8.18 hli). Tom qab kev npaj saum npoo thiab qhov ntsuas ntsuas, tag nrho rau meters tau pom cov cim ruaj khov nrog cov teeb liab zoo tshaj 85%. Cov ntaub ntawv tau muab tso rau hauv lub tsev BMS ntawm Modbus RS485, ua rau pab pawg neeg siv los txheeb xyuas ob ceg uas tsis tu ncua overflowing, nkim chiller zog.

Piv txwv qhov project 2: Txheeb xyuas qhov Suspected Drifting Mag Meter

Ib tsob nroj tshuaj tshuaj DN150 mag meter ntawm cov dej txias xa rov qab tau nyeem 15% siab dua li cov nroj tsuag qhov ntsuas kub ntsuas. Tsis yog rub lub ntsuas ntsuas inline rau lub rooj zaum calibration (uas yuav tsum tau kaw 3-hnub), pab neeg saib xyuas tau teeb tsa lub tshuab nqa nqa tau- ntawm meter ntawm tib kab, 8 meters hauv qab. Nrog rau kev khiav ncaj nraim (tshaj 15D ntws) thiab paub tseeb tias tag nrho - yeeb nkab mob, chav tsev nqa tau nyeem nyob rau hauv 2% ntawm cov kev xav tau txaus-paub tseeb tias mag meter's electrodes tau fouled thiab xav tau kev tu. Tag nrho lub sijhawm kuaj mob: 4 teev tsis yog 3 hnub.

Piv txwv qhov project 3: Kev saib xyuas dej khib nyiab

Lub chaw kho dej khib nyiab xav tau los ntxiv kev saib xyuas cov dej ntws mus rau DN400 qhov hluav taws xob cov yeeb nkab uas khiav hauv av nrog txwv tsis pub nkag. Tom qab paub tseeb tias cov yeeb nkab yog ib txwm muaj tag nrho (tshuaj xyuas los ntawm kev ntsuas siab) thiab qhov chaw sab hauv tau txais kev pom zoo (kuaj nrog lub ntsuas hluav taws xob ultrasonic tuab uas qhia tau zoo ib yam 6.0 hli phab ntsa tuab), ib qho ruaj khov clamp- ntawm meter tau teeb tsa hauv Z-mount configuration. Lub teeb pom kev zoo yog 78%- qis dua cov yeeb nkab huv si tshiab yuav muab, tab sis ruaj khov txaus rau kev saib xyuas txuas ntxiv ntawm cov nroj tsuag xav tau ± 3% cov txheej txheem raug.

10 Cov lus nug kom nug tus neeg muag khoom ua ntej koj yuav

Ntau qhov haujlwm ua haujlwm tsis zoo tsis yog vim qhov ntsuas tsis zoo, tab sis vim tias cov lus nug raug tsis tau nug thaum lub sijhawm yuav khoom.

Cov lus nug nquag

Ib qho clamp- ntawm ultrasonic flow meter tuaj yeem ua haujlwm ntawm cov yeeb nkab yas?

Yog lawm, tab sis qhov tseeb suab nrawm rau cov khoom yas tshwj xeeb (PVC, PE, PP, PVDF, thiab lwm yam) yuav tsum tau nkag mus. Cov kav dej yas feem ntau muaj cov khoom siv acoustic sib txawv dua li cov kav hlau, thiab kev ntsuas ntawm phab ntsa yuav tsum yog qhov tseeb. Qee qhov tuab heev - cov kav dej HDPE phab ntsa yuav xav tau Z-mount lossis tshwj xeeb transducers.

Kuv xav tau cov yeeb nkab ncaj ntau npaum li cas?

Qhov kev pom zoo dav dav yog 10 yeeb nkab diameters ntws thiab 5 yeeb nkab diameters downstream ntawm qhov ntsuas taw tes. Tom qab ob lub luj tshib hauv cov dav hlau sib txawv, 20D sab sauv yog nyiam. Tsawg ncaj khiav tsis tiv thaiv kev teeb tsa, tab sis nws yuav txo qhov raug.

Kuv puas tuaj yeem siv nws ntawm cov yeeb nkab nrog hauv ob sab phlu?

Yog lawm, tsuav yog cov khoom siv hauv ob sab phlu, tuab, thiab lub suab nrawm tau paub thiab raug nkag mus. Cov hauv ob sab phlu muaj xws li roj hmab, cement, thiab epoxy. Yog hais tias lub hauv ob sab phlu tau delaminated los yog muaj huab cua nyob tom qab nws, lub teeb liab yuav degraded heev.

Dab tsi yog qhov sib txawv ntawm lub tshuab nqa tau thiab lub clamp ruaj khov- ntawm 'meter'?

A portable meteryog lub roj teeb -tso tawm, tsim los rau kev teeb tsa sai thiab hloov chaw, thiab feem ntau yog siv rau kev sim thiab tshuaj xyuas ib ntus. Lub ntsuas hluav taws xob ruaj khov yog txuas mus tas li, txuas txuas txuas ntxiv, thiab npaj rau lub sijhawm ntev - saib xyuas thiab kev sib koom ua ke. Nyeem ntxiv txog qhov sib txawv ntawm peb tsab xov xwm ntawmtsau vs. portable ultrasonic flow meters.

Lub clamp yog qhov tseeb npaum li cas- ntawm 'meter' piv rau inline meter?

Raws li kev teeb tsa zoo (cov yeeb nkab huv si, tag nrho cov yeeb nkab, qhov tsis raug, kev khiav ncaj nraim), kev thauj mus los - lub sij hawm clamp- ntawm meters feem ntau ua tiav ± 1% ntawm kev nyeem ntawv. Qhov no yog qhov dav dua li lub qhov dej- ntsia inline mag meter (± 0.2–0.5%) tab sis ntau tshaj qhov tsim nyog rau feem ntau cov txheej txheem saib xyuas, kev tshuaj xyuas lub zog, thiab daim ntawv thov kev pov thawj.

Nws puas tuaj yeem ntsuas qhov ntws hauv ob qho tib si?

Feem ntau ntawm kev thauj mus los- lub sij hawm clamp- ntawm meters tuaj yeem ntes thiab ntsuas ob- kev taw qhia ntws. Qhov no yog qhov muaj txiaj ntsig zoo hauv cov tshuab nrog cov kev hloov pauv rov qab, kev siv thermal cia, lossis cov xwm txheej ua haujlwm uas yuav tsum tau lees paub qhov kev taw qhia ntws.

Cov yeeb nkab vibration puas cuam tshuam rau kev ntsuas?

Kev vibration tseem ceeb los ntawm cov twj, compressors, lossis cov tshuab uas nyob ib sab tuaj yeem qhia cov suab nrov rau hauv lub teeb liab ultrasonic thiab ua rau kev nyeem tsis ruaj khov. Yog tias muaj kev vibration, sim mounting lub sensors ntawm qhov chaw deb ntawm qhov chaw vibration, los yog siv kev co -dampening mounting accessories yog muaj.

Ntev npaum li cas coupling compound kav?

Silicone-raws li kev sib txuas sib txuas feem ntau tseem siv tau rau 1-3 xyoos nyob rau hauv cov xwm txheej nruab nrab. Kev kub siab, UV raug, thiab ya raws tuaj yeem ua kom degradation. Rau kev txhim kho mus tas li, kev tshuaj xyuas txhua 12 lub hlis yog lub sijhawm tsim nyog.

Xaus

Lub clamp- ntawm ultrasonic flow meter tsis yog cov lus teb rau txhua qhov teeb meem ntsuas ntws. Tab sis thaum daim ntawv thov haum rau -cov dej huv lossis cov dej huv huv, cov yeeb nkab hauv qhov tsim nyog, qhov chaw tsim nyog txaus- nws muaj qee yam uas tsis muaj inline thev naus laus zis tuaj yeem: kev xa tawm sai ntawm lub neej tsis muaj txheej txheem cuam tshuam.

Txoj kev mus rau ib qho kev vam meej installation tsis nyuaj, tab sis nws yog unforgiving ntawm shortcuts. Tau txais cov yeeb nkab tsis raug. Xaiv txoj kev txhim kho kom raug. Npaj qhov chaw. Tshawb xyuas lub teeb liab ua ntej tso siab rau kev nyeem ntawv. Thiab thaum tus lej tsis zoo, ua haujlwm los ntawm kev daws teeb meem cov txheej txheem-vim tias cov teeb meem feem ntau muaj qhov ua rau ncaj qha.

• Yog tias koj tab tom ntsuas lub clamp- ntawm ultrasonic meter rau koj qhov project, pib los ntawm kev teb plaub nqe lus nug ncaj ncees:
• Puas yog lub raj xa dej thiab cov kua dej no haum rau kev ntsuas tsis yog -invasive ultrasonic?
• Qhov kev khiav hauj lwm txoj cai thiab mounting txoj kev haum rau daim ntawv thov?
• Cov xwm txheej ntawm qhov chaw puas tuaj yeem txhawb kev ruaj khov, ntsuas qhov tseeb?
• Qhov ntsuas ntsuas no puas ua haujlwm ruaj khov, ntsuas ntsuas, lossis ntsuas ntsuas ib ntus?

Thaum cov lus nug no muaj cov lus teb meej, qhov project twb tau txiav txim siab ntau dua ib nrab.

Xav tau kev pab ntsuam xyuas koj daim ntawv thov tshwj xeeb?Hu rau peb pab pawg engineeringlos yogxa ib qho kev nugnrog koj cov yeeb nkab thiab cov txheej txheem cov ntsiab lus, thiab peb tuaj yeem pom zoo rau kev daws teeb meem.

Sau los ntawm Flowtmeter Application Engineering Team · Hloov tshiab kawg: 2026
